Network Connectivity for ALPR Systems: Choose the Right Solution for Maximum Performance
A simple guide to help you pick the best connectivity option for your automatic license plate recognition system so you get reliable performance and maximum value.
1. Why Your Network Connectivity Choice Matters for ALPR Systems
License plate reader systems need to send data quickly and reliably from cameras to your main system. Whether it's a stolen vehicle alert that needs to reach officers in seconds or customer data that helps improve service, your network connectivity choice can make or break your entire ALPR investment.
The smartest ALPR projects begin with a simple but powerful question: "What results do we want from this system?"
Once this goal setting is in place, you can start working on what kind of connectivity needs to be designed to most efficiently achieve those goals.
Some organizations pick connectivity based on what seems easiest to install. Others choose the cheapest option upfront. But the best approach is matching your network connectivity to your actual needs—considering factors like location, data volume, reliability requirements, and long-term costs.
This article shows you how to evaluate the best connectivity options for ALPR cameras. It also gives real examples to help you understand which network connectivity solution works best in different situations.
2. Planning Your Network Connectivity Strategy for ALPR Systems
Before choosing your network connectivity approach, ask these key questions.
About Your Locations:
About Your Requirements:
About Your Resources:
About Your Growth:
3. The Three Main ALPR Connectivity Options
When planning your automatic license plate recognition system, you have three main network connectivity choices. Each has its own strengths and weaknesses.
We will look at each network connectivity option in detail to help you make the right choice.

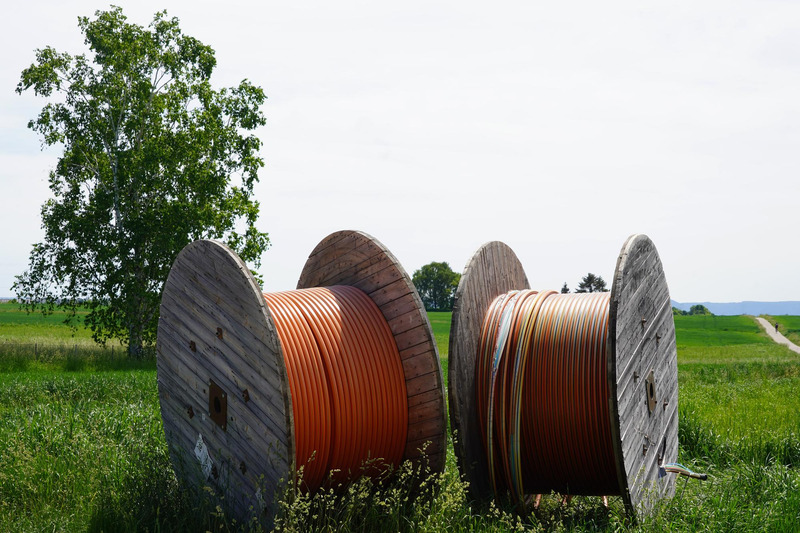

Wired Connections (Ethernet/Fiber)
Physical cables that connect your ALPR cameras directly to your network. This includes traditional Ethernet cables and high-speed fiber optic connections.
Wireless Connections (Wi-Fi)
Radio signals that connect your license plate recognition cameras to wireless access points, which then connect to your main network.
Cellular Connections (4G/5G)
Mobile network connections that use cell towers to transmit data from your license plate capture cameras to your central system.

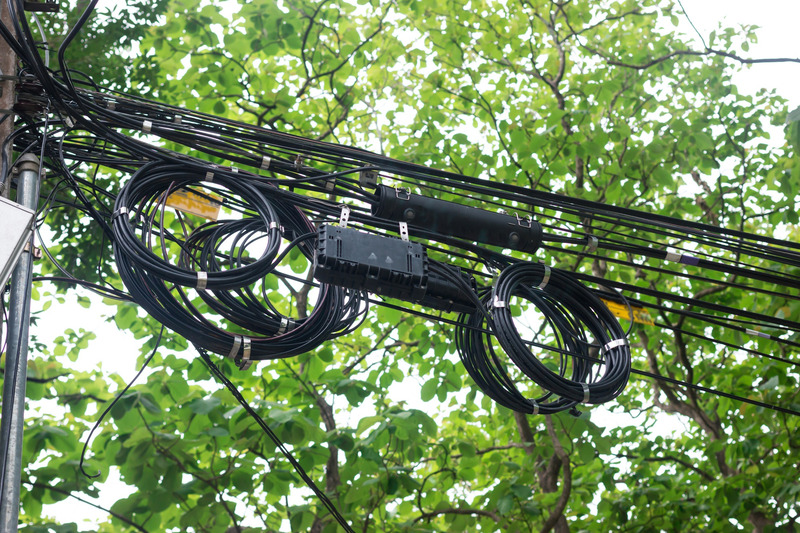

4. Wired Network Connectivity: The Reliable Workhorse
a) How Wired Network Connectivity Works for ALPR Systems
Wired connections use physical cables to carry data from your license plate reader cameras to your central system. This can be standard Ethernet cables (Cat5e, Cat6) for shorter distances or fiber optic cables for longer distances and higher speeds.
The data travels directly through the cable without interference from weather, other electronic devices, or network congestion. This makes wired network connectivity the most reliable option for critical ALPR applications.
You have an option of renting wired connectivity from a public ISP where they will dedicate a part of their wired bandwidth for you, but the limitation is this will only be available for the specific routes the ISP has laid cabling for.
The other option is to run cables yourself for the specific network you are designing.
b) Best Use Cases for Wired Network Connectivity
Permanent Installations: When your automatic license plate reader cameras will stay in the same location for years, wired network connectivity makes sense. Examples include:
High-Data Applications: When you need to send large amounts of data quickly:
Mission-Critical Operations: When system downtime isn't acceptable:
c) Advantages of Wired Network Connectivity for ALPR
- Most Reliable: Physical cables are rarely affected by weather, interference, or network congestion
- Fastest Speeds: Can handle large amounts of data without delays
- Most Secure: Harder for outsiders to intercept your data
- Predictable Performance: Speed and reliability stay consistent over time
- No Monthly Fees: Once installed, no ongoing network connectivity costs (unless you are renting wired bandwidth from an ISP)
d) Challenges with Wired ALPR Systems
- Installation Complexity: Requires running cables, which can be expensive and disruptive
- Limited Flexibility: Hard to move cameras once cables are installed
- Weather Vulnerability: Storms or accidents can damage exposed cables
- Distance Limitations: Ethernet cables work up to about around 100 meters (328 feet) without signal degradation; longer distances need fiber optic cables
- Upfront Costs: Cable installation and trenching can be expensive initially
e) Implementation Best Practices for Wired ALPR
Plan Your Cable Routes Carefully: If you choose to run your own cables to serve the network you have designed, you should thoroughly map out where cables will run before installation. Consider:
- Underground vs. overhead routing
- Access for future maintenance
- Protection from weather and damage
- Local building codes and permits
Use Quality Components: Don't cut corners on cables, connectors, or switches. Poor-quality components cause problems later.
Plan for Growth: Install extra cables or larger conduits than you need today. Adding more cameras later will be much easier.
Protect Your Investment: Use weatherproof connectors, surge protectors, and proper grounding to prevent damage.
Looking to elevate your security infrastructure with cutting-edge LPR solutions?
We are just a phone call away. Call us today at (813) 749-0892 for a free consultation.

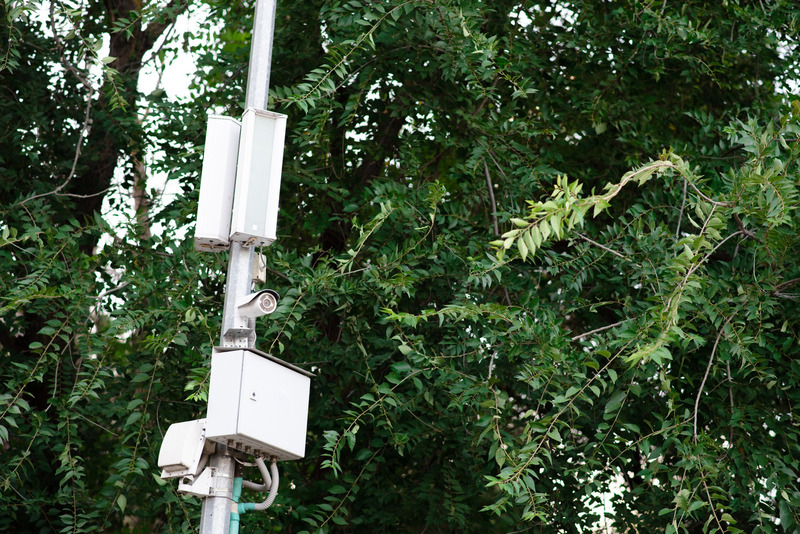

5. Wireless Network Connectivity: Flexible and Fast to Deploy
a) How Wireless Network Connectivity Works for ALPR Systems
Wireless ALPR systems use Wi-Fi signals to connect license plate detection cameras to wireless access points. These access points then connect to your main network through wired connections.
Modern wireless network connectivity can handle high-speed data transmission and work well for most ALPR applications. They use standard Wi-Fi technology, making them compatible with existing network equipment.
b) Best Use Cases for Wireless Network Connectivity
Temporary Installations: When you need ALPR coverage for a limited time
Hard-to-Wire Locations: When running cables is difficult or impossible
Flexible Deployments: When you might need to move ALPR cameras later
c) Advantages of Wireless Network Connectivity for ALPR
- Quick Installation: Can be set up in hours instead of days or weeks
- Flexible Positioning: More easily able to move equipment and cameras to new locations
- Lower Initial Costs: No trenching, conduit, or cable installation needed
- Works in Difficult Locations: Can connect cameras where cables can't reach
- Easy to Expand: Adding new LPR cameras is simple and fast
d) Challenges with Wireless Network Connectivity for ALPR
- Range Limitations: Typically works up to 300-500 feet in line of sight from access points
- Interference Issues: Other devices, weather, and obstacles can affect performance. Common sources include wireless network saturation from multiple Wi-Fi networks, radio frequency (RF) interference from microwave ovens, high power radios in vehicles, helicopters, and other RF-emitting equipment.
- Power Requirements: Edge equipment and cameras still need power cables, even if data is wireless
- Security Concerns: Wireless signals can be intercepted more easily than wired
- Performance Variability: Speed and reliability can change based on conditions
e) Implementation Best Practices for Wireless Network Connectivity
Survey Your Site First: Test wireless signal strength and chanel saturation at all camera locations before installation. Consider:
- Physical obstacles like buildings, trees, or metal structures
- Interference from other wireless devices
- Weather conditions that might affect signals
Use Enterprise-Grade Equipment: Consumer Wi-Fi equipment isn't reliable enough for license plate recognition systems. Invest in commercial-grade access points and wireless cameras.
Plan for Redundancy: Have backup wireless access points or alternative network connectivity options for critical cameras.
Secure Your Network: Use strong encryption (WPA3), change default passwords, and segment your ALPR network from other systems.

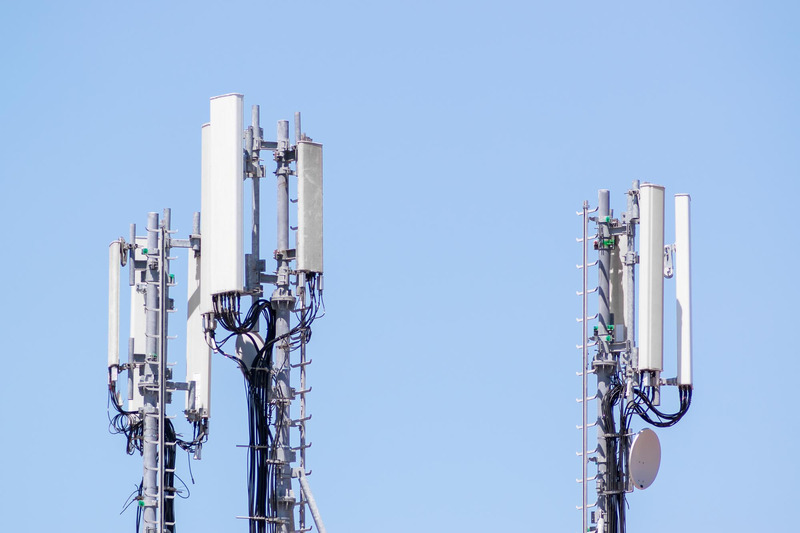

6. Cellular Network Connectivity: Ultimate Flexibility for ALPR
a) How Cellular Network Connectivity Works for ALPR Systems
Cellular ALPR systems use mobile networks (4G, 5G) to transmit data from license plate reader cameras to your central system. Each camera or group of cameras has a cellular modem that connects to nearby cell towers.
Data travels through the cellular network to the internet, then to your ALPR management system. This network connectivity works anywhere there's cellular coverage, making it the most flexible option.
b) Best Use Cases for Cellular Network Connectivity
Remote Locations: When other network connectivity options aren't available:
Mobile Applications: When automatic license plate readers move frequently:
Quick Deployments: When you need license plate recognition coverage immediately:
c) Advantages of Cellular Network Connectivity for ALPR
- Works Just About Anywhere: Functions wherever there's cellular coverage
- Fastest Deployment: Can be operational in minutes
- Minimal Infrastructure Needed: Doesn't require existing network equipment
- Highly Mobile: License plate reader cameras can move to new locations easily
- Redundant by Nature: Multiple cell towers provide backup coverage
d) Challenges with Cellular ALPR Systems
- Ongoing Monthly Costs: Data plans for each camera or connection point
- Data Usage Limits: Some plans limit how much data you can send
- Speed Limitations: May be slower than wired or wireless connections
- Coverage Variations: Performance depends on local cellular tower quality
- Battery Drain: Cellular modems use more power than other options
e) Implementation Best Practices for Cellular ALPR
Test Coverage First: Verify cellular signal strength and quality at all camera locations. Consider:
- Signal strength from multiple carriers
- Data speeds during peak usage times
- Coverage reliability during different weather conditions
Choose the Right Data Plan: Work with carriers to find plans that match your data usage:
- Unlimited plans for high-traffic locations
- Shared data pools for multiple cameras
- Plans optimized for IoT devices
Monitor Data Usage: Track how much data each camera uses to avoid overage charges and optimize performance.
Plan for Power: Cellular modems use more power, so ensure adequate power supply and consider backup batteries.
7. Network Connectivity Comparison: Making the Right Choice
Reliability Rankings
1. Wired (Highest): Most consistent performance, least affected by external factors
2. Wireless (Medium): Good reliability when properly installed and maintained
3. Cellular (Variable): Depends on local coverage quality and network congestion
Speed Rankings
1. Wired (Fastest): Can handle highest data volumes with lowest latency
2. Wireless (Fast): Good speeds for most license plate recognition applications
3. Cellular (Moderate): Adequate for most uses, but may have limitations during peak times
Installation Speed Rankings
1. Cellular (Fastest): Can be operational immediately
2. Wireless (Fast): Usually ready in hours or days
3. Wired (Slowest): May take days or weeks depending on cable runs
Long-Term Cost Rankings
1. Wired (Lowest): High upfront costs, but no ongoing fees (unless you are renting wired bandwidth)
2. Wireless (Medium): Moderate upfront costs, minimal ongoing fees
3. Cellular (Highest): Low upfront costs, but ongoing monthly charges
8. Hybrid Network Connectivity Approaches: Getting the Best of All Worlds
Many successful ALPR deployments use multiple network connectivity types to maximize reliability and performance:
Primary and Backup Connections
Use wired network connectivity as your primary network, with cellular as backup. If the main connection fails, LPR cameras automatically switch to cellular to maintain operation.
Location-Based Choices
Use different network connectivity types based on each camera's location:
- Wired for permanent, high-traffic locations
- Wireless for flexible indoor applications
- Cellular for remote, mobile, and temporary applications
Phased Implementation
Start with quick-to-deploy options like cellular or wireless network connectivity, then upgrade to wired connections for permanent installations.
9. Industry-Specific Network Connectivity Recommendations
Law Enforcement
- Mobile Units: Cellular network connectivity for patrol vehicles
- Fixed Locations: Wired for headquarters, wireless for temporary operations
- Remote Monitoring: Cellular for highway cameras and rural locations
Retail Stores
- Parking Lots: Wired network connectivity for permanent coverage, wireless for seasonal changes
- Multiple Locations: Consistent approach across all stores, typically wired or wireless
Rental Car Companies
- Processing Areas: Wired network connectivity for high-data applications
- Remote Locations: Cellular when other options aren't available
- Overflow Lots: Cellular or wireless for flexibility
Campus Security
- Main Entrances: Wired network connectivity for reliability
- Temporary Events: Wireless for flexibility
- Remote Areas: Cellular for areas without infrastructure

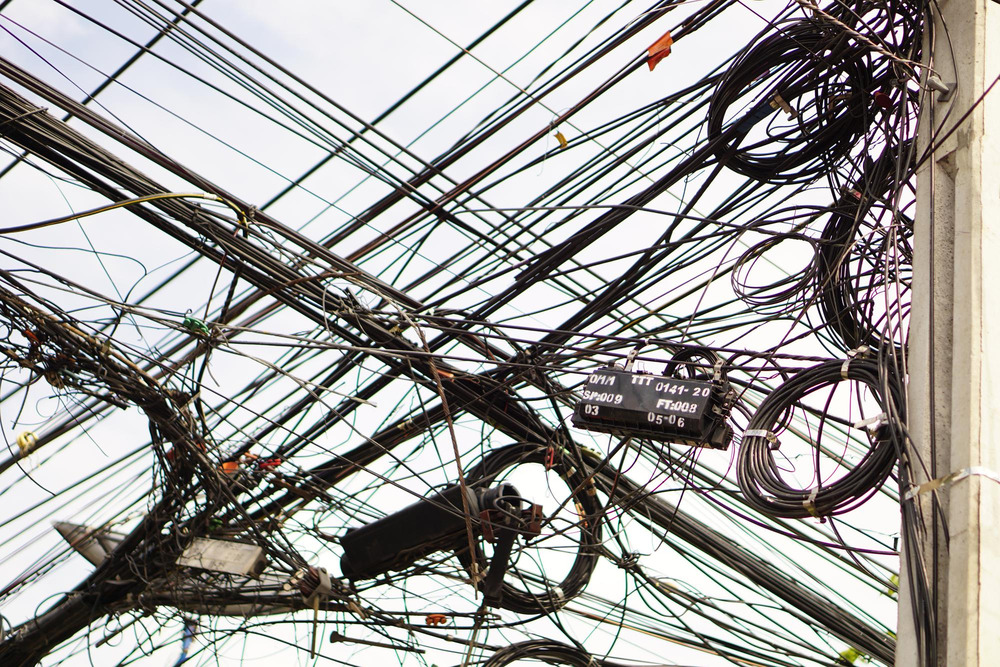

10. Common Network Connectivity Mistakes to Avoid
Choosing Based on Price Alone
The cheapest network connectivity option upfront often costs more long-term through downtime, poor performance, or high ongoing fees.
Ignoring Future Needs
Plan for growth and changing requirements. It's easier to install extra network connectivity capacity initially than to upgrade later.
Skipping Site Surveys
Always test network connectivity options at actual camera locations before making final decisions.
Overlooking Redundancy
For critical applications, have backup network connectivity options to maintain operation if the primary connection fails.
Inadequate Power Planning
All network connectivity options need power. Understand what the uptime requirements are and plan for reliable power delivery and backup options.
11. Final Thoughts
The right network connectivity choice depends on your specific needs, locations, and resources. There's no one-size-fits-all answer, but understanding the strengths and limitations of each option helps you make informed decisions.
Key takeaways:
- Wired network connectivity offers the highest reliability and performance for permanent installations
- Wireless network connectivity provides flexibility and faster deployment for many applications
- Cellular network connectivity works anywhere but has ongoing costs and variable performance
- Hybrid approaches often provide the best balance of reliability, performance, and cost
When evaluating the best connectivity options for ALPR cameras, start by clearly defining your requirements. Consider both immediate requirements and future growth when making your network connectivity decision.
📘 Want help planning your complete license plate recognition system? Check out our Ultimate ALPR Implementation Guide for detailed planning advice, cost breakdowns, and implementation checklists.
LICENSE PLATE RECOGNITION (LPR): THE ULTIMATE GUIDE TO VEHICULAR INTELLIGENCE
PlateSmart’s deep dive into License Plate Recognition and its immense contribution to security agencies and businesses.
Frequently Asked Questions About Network Connectivity for ALPR Systems
Network connectivity is crucial for ALPR systems because license plate reader cameras must transmit data quickly and reliably to your central system for processing and alerts. Whether it's a stolen vehicle alert that needs to reach officers in seconds or customer data for business operations, your network connectivity choice can make or break your entire automatic license plate recognition investment. Poor connectivity leads to delayed alerts, missed captures, and reduced system effectiveness.
The three main network connectivity options for ALPR systems are wired connections using Ethernet or fiber optic cables, wireless connections using Wi-Fi technology, and cellular connections using 4G/5G mobile networks. Each option offers different advantages: wired provides maximum reliability and speed, wireless offers flexibility and quick deployment, while cellular network connectivity works anywhere with cell tower coverage for ultimate mobility and remote installations.
Organizations should choose wired network connectivity for permanent license plate reader installations, high-data applications requiring instant alerts, and mission-critical operations where downtime isn't acceptable. Wired connections work best for retail store parking lots, campus security gates, rental car facilities, and law enforcement systems that need guaranteed reliability. While installation is more complex and expensive upfront, wired network connectivity provides the most consistent performance with no ongoing monthly fees.
Wireless network connectivity for ALPR systems offers quick installation, flexible camera positioning, lower initial costs, and easy expansion capabilities. However, challenges include range limitations typically up to 300-500 feet, potential interference from other devices and weather conditions, ongoing power requirements for access points, and variable performance based on environmental factors. Wireless works best for temporary installations, hard-to-wire locations, and flexible deployments where automatic license plate reader cameras might need relocation.
Cellular network connectivity uses mobile networks (4G/5G) to transmit data from license plate reader cameras through cell towers to your central ALPR management system. Each camera or group of cameras has a cellular modem that connects to nearby towers, with data traveling through the cellular network to the internet and then to your system. This provides ultimate flexibility and works anywhere with cellular coverage, making it ideal for remote locations and mobile applications.
Network connectivity choice should be determined by location requirements (permanent vs. temporary), data volume and speed needs, reliability requirements, budget constraints, existing infrastructure, and growth plans. Consider how many license plate recognition cameras you need, whether installations are temporary or permanent, how quickly you need alerts and data, what happens if connectivity fails, and whether you'll add more automatic license plate reader systems later. These factors help match connectivity to actual operational needs.
Hybrid network connectivity approaches maximize ALPR reliability and performance by using multiple connection types strategically. This includes primary wired connections with cellular backup for automatic failover, location-based choices using wired for permanent high-traffic areas and cellular for remote locations, and phased implementation starting with quick-deploy options before upgrading to permanent wired connections. Hybrid approaches provide the best balance of reliability, performance, and cost-effectiveness.
Cost considerations vary significantly between network connectivity options for ALPR systems. Wired connections have high upfront installation costs but no ongoing fees (unless renting bandwidth), wireless has moderate upfront costs with minimal ongoing fees, while cellular has low upfront costs but requires ongoing monthly data charges. Long-term, wired is typically the most cost-effective for permanent installations, while cellular costs can add up significantly over time for multiple license plate reader cameras.
Organizations can ensure reliable network connectivity for critical ALPR applications by conducting thorough site surveys before installation, using enterprise-grade equipment, planning for redundancy with backup connections, implementing proper security measures, and monitoring performance regularly. For mission-critical automatic license plate recognition deployments, consider primary wired connections with cellular backup, multiple wireless access points for coverage redundancy, and uninterruptible power supplies for all network equipment.
Common network connectivity mistakes include choosing based on price alone without considering long-term costs and reliability, ignoring future growth needs and expansion requirements, skipping proper site surveys to test connection quality, overlooking redundancy for critical applications, and inadequate power planning for network equipment. Organizations should evaluate total cost of ownership, plan for scalability, test all connectivity options at actual camera locations, and ensure reliable power delivery and backup options for their license plate recognition systems.
Network connectivity requirements vary by industry based on specific operational needs. Law enforcement requires cellular for mobile patrol units, wired for headquarters reliability, and hybrid approaches for various deployment scenarios. Retail stores typically use wired for permanent parking lot coverage with wireless for seasonal flexibility. Rental car companies need wired network connectivity for high-data processing areas and cellular for remote locations. Campus security uses wired for main entrances, wireless for events, and cellular for areas without existing infrastructure.
Performance differences between network connectivity options are significant for ALPR systems. Wired connections offer the highest reliability and fastest speeds with consistent performance, wireless provides good speeds and reliability when properly installed but with potential interference issues, while cellular performance varies based on local coverage quality and network congestion. For automatic license plate recognition applications requiring instant alerts and high data volumes, wired network connectivity typically provides the most consistent performance.
(The visuals on this page are stock images, used for illustrative purposes only)
